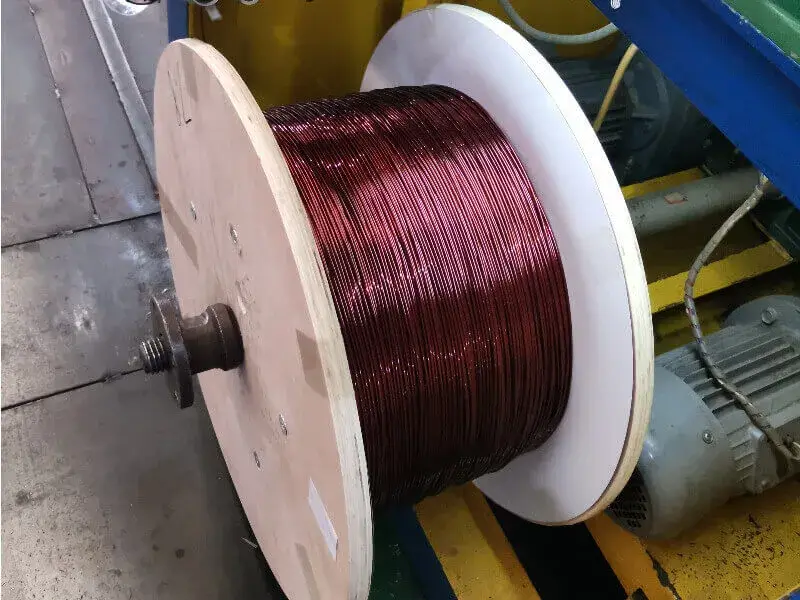

Core Definition of Copper Enameled Wire
In the field of electrical engineering and electronics manufacturing, enameled copper wire is an indispensable core basic material, which also has two common industry aliases: winding wire and electromagnetic wire.
Simply put, enameled copper wire is a high-purity electrolytic copper as a conductor, the surface evenly coated with a layer of ultra-thin polymer insulating varnish film of the special wire, but also all kinds of electromagnetic coils of the core material.
Different from ordinary bare copper wire, its core advantage is to take into account the efficient conductivity and reliable insulation, can be tightly wound into a coil, while avoiding the contact between the conductor short circuit, is the key carrier of electric energy and magnetic energy conversion.
Whether it is daily home appliances, automotive electronics, or industrial motors, power transformers, are inseparable from the support of enameled copper wire, which is known as the “invisible heart” of the electrical equipment, is the basis of modern industry and the operation of electronic equipment to protect.

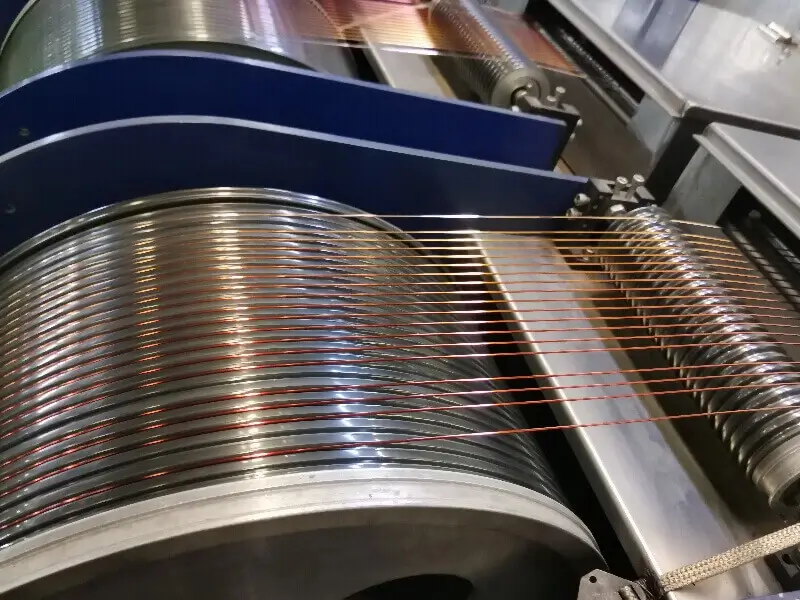

The enameled wire insulation layer and enamel paint product core composition analysis
The performance of enameled copper wire depends largely on the surface of the “insulating varnish film”, which is also known as enameled lacquer, belongs to the main insulating layer of the wire, which is different from the core part of ordinary copper wire.
Commonly used enamel lacquer raw materials are polyester, polyurethane, polyamideimide and other polymer materials, through the high temperature curing process, tightly attached to the surface of the copper conductor, forming a thin and tough insulation barrier.
The thickness of this insulating film is extremely thin, which ensures the insulation effect and eliminates the risk of short-circuit and leakage, and does not affect the tight winding of the coil, which is perfectly adapted to the needs of miniaturization and high-density equipment design.
Enameled copper wire diameter specifications span a wide range of ultra-fine models with a diameter of less than a hair, suitable for watches, precision electronic components; coarse models with a diameter of up to several millimeters, mostly used in wind turbines, large industrial motors and other heavy equipment, to meet the winding needs of different scenarios.

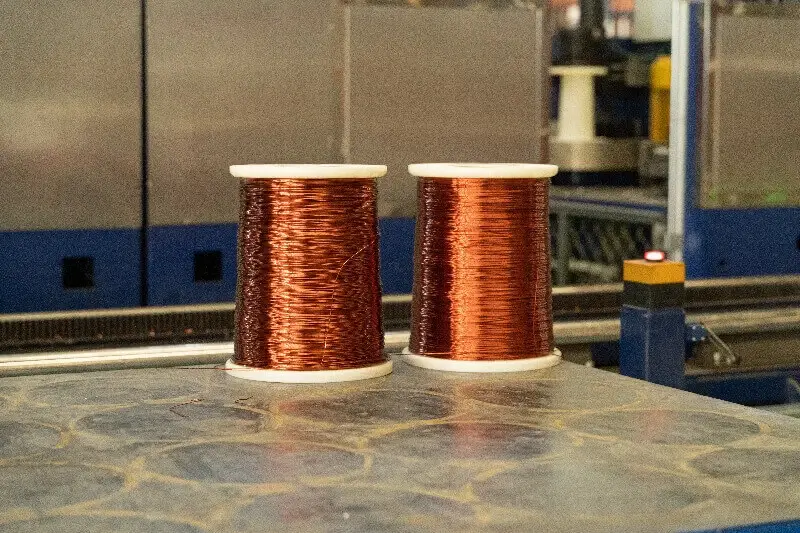

The common enameled copper wire classification and application scenarios
Enameled copper wire can be categorized into five mainstream types according to the material of insulating varnish film and performance characteristics, each of which corresponds to different working conditions, and can be accurately matched when purchasing and selecting.
1. Polyester Enameled Copper Wire (PE)
Polyester enameled copper wire is a common type in the industry, with stable electrical performance, good heat resistance and solvent resistance, moderate cost, and a wide range of applications.
Polyester enameled copper wire performs particularly well in conventional voltage, ordinary temperature motors, small transformers and other equipment, and can meet basic electromagnetic conversion needs.
However, its thermal shock performance is general, poor resistance to hydrolysis, try to avoid the use of sealed, humid and easy to produce water vapor equipment environment, to avoid the insulating varnish film aging due to hydrolysis, affecting the long-term operating life of the equipment.
2. Sealed enameled copper wire (AIW)
This enameled wire adopts polyamide imide insulating varnish film, with extremely high heat-resistant grade, the temperature index can reach 220℃ and 240℃, which belongs to M class heat-resistant specification, and it is the core selection for high-temperature working condition.
It has outstanding mechanical strength and high overload resistance, and even under frequent start-stop and high load operating conditions, the insulation layer remains stable and the performance is extremely durable.
With excellent heat resistance and mechanical properties, sealed enameled copper wire is mainly used in automotive electronics, industrial heavy-duty motors, high-end home appliances and other scenarios with stringent requirements on mechanical properties and heat resistance, and is the preferred material for high-end equipment.
3. Self-adhesive copper enameled wire
The most important feature of self-adhesive enameled copper wire is that there is no need for additional dipping and drying to fix the coil, and the coil can be self-adhesive with the help of heating or solvents such as methanol and ethanol after the winding is completed.
Traditional coils need to be dipped in paint and dried after winding, which is time-consuming and labor-intensive and increases production costs, while self-bonded enameled copper wire can greatly simplify this process and shorten the processing time by more than 30%.
This model is suitable for mass production, precise structure of small coil components, such as micro-motor, precision sensor coils, etc., can effectively improve production efficiency and reduce the cost of enterprise processing.
4. Polyvinyl acetal enameled copper wire (PVA)
Adopting polyvinyl acetal insulation coating, the heat-resistant grade is 120℃ (Class A), with high mechanical strength, good flexibility, and excellent performance in thermal shock resistance and hydrolysis resistance.
In the long-term stable operation of the transformer, PVA enameled copper wire insulation can resist temperature changes and water vapor erosion, to avoid insulation failure, is the core selection of power transformers, small inductor coil.
It is the core choice for power transformers and small inductor coils. Its suitable voltage and current conditions are stable, which can guarantee the safety of equipment operation for a long time, and it has become the mainstream material for the manufacture of medium and low-voltage transformers.
5. Straight welding / polyurethane enameled copper wire
Polyurethane insulating varnish film with straight welding characteristics, welding without stripping the insulation layer in advance, can be directly through the high temperature soldering iron welding, completely eliminating the paint stripping process, greatly enhancing the production and assembly efficiency.
Traditional copper wire soldering requires stripping the insulation layer first, which is not only time-consuming, but also prone to damage the copper core, while direct soldering enameled copper wire can realize automated soldering, which is suitable for the rhythm of assembly line production.
This type is suitable for automated mass production of electronic components, precision coils, such as cell phone charging coils, audio equipment coils, etc., can effectively reduce labor costs and improve overall production efficiency.
The core performance characteristics of copper enameled wire
Qualified enameled copper wire must meet a number of hard performance indicators, and comply with ISO international standards and Japanese industrial standards such as JIS C 3202, JIS C 3003, etc., to ensure the safety and longevity of use from the source.
1. Appearance and surface quality
The surface of high quality enameled copper wire is smooth and even, presenting a uniform metallic luster, without scratches, burrs, exposed copper and other defects, any appearance defects may affect the performance of the insulation layer and conductive stability.
Insulating paint film at room temperature is not sticky, no adhesion, coating thickness uniformity, no bubbles, pinholes and other issues, the appearance of the standard is the basic premise of the enameled copper wire performance qualification.
2. Flexibility and adhesion
Enameled copper wire needs to have good bending, stretching performance, winding or bending process, no cracks, shedding of insulating varnish film, to avoid insulation breaks.
Strong adhesion between the paint film and the copper conductor, after repeated bending and stretching tests, the coating will not be separated from the conductor, even in the vibration of long-term operation of the equipment, but also to maintain a complete state of insulation.
3. Electrical insulation performance
Breakdown voltage is the core electrical index, the breakdown voltage of qualified products must meet the requirements of the national standard and industry standard, to prevent the use of insulation breakdown, short circuit and other safety issues.
At the same time, the conductor resistance is strictly controlled within the upper limit of the standard, and the high purity copper core ensures low resistance and low loss, realizing efficient power transmission and reducing energy loss in the operation of equipment.
4. Thermal and environmental resistance
With excellent thermal shock resistance, the insulating paint film will not crack or become brittle when dealing with sudden temperature changes, and always maintains a complete insulating barrier.
At the same time with good resistance to solvents, reagents, insulating oil resistance, in the industrial chemical environment, oil environment, the film will not be corroded, wear and tear, long-term insulation stability.
5. Weldability and pinhole index
Straight welding enameled copper wire, welding performance up to standard, solid welding joints, no false welding, false welding, suitable for automated welding equipment, high precision requirements.
The number of pinholes is strictly controlled within the standard range, too many pinholes will directly lead to the existence of tiny holes in the insulation layer, triggering the risk of leakage and short-circuit, and high-quality products will be strictly controlled through precision technology.
The core advantages of enameled copper wire analysis
Enameled copper wire can become the core material in the electrical and electronic fields, from its set of conductivity, insulation, technology, cost and other multiple advantages in one, compared with ordinary conductors and other materials winding wire, with irreplaceable competitiveness.
1. Ultimate conductivity
Copper is second only to silver in the natural conductivity of the metal, after annealing, electrolytic refining treatment of enameled copper wire copper core, conductivity is further enhanced, the loss of power transmission process is extremely low.
In motors, transformers and other power conversion equipment, low resistance copper core can reduce the Joule heat generated to enhance the energy efficiency of the equipment, compared with other conductive materials such as aluminum wire, energy consumption can be reduced by 15% -20%.
For new energy vehicles, industrial energy storage and other areas with stringent requirements on energy consumption, the conductive advantages of enameled copper wire can be directly translated into energy saving and range of equipment.
2. Ultra-thin Insulation Layer
The thickness of the insulating film of copper-enameled wire is only a few microns, which is much thinner than that of the traditional yarn-wrapped or paper-wrapped insulating layer. In the same coil space, a tighter winding arrangement can be realized, which greatly improves the slot filling rate of the coil.
The increase in slot fullness means that the equipment can achieve higher electromagnetic performance in a smaller volume, promoting the development of equipment to miniaturization, lightweight, high-density, which is in wire with the design trend of modern electronic equipment “thin and light”.
For example, the miniature coils in smartphones and smart wearable devices rely on the ultra-thin insulating properties of enameled copper wires to achieve a balance between size and performance.
3. Adaptability to a wide range of models
The five mainstream copper enameled wire models cover all scenarios from general civil to high-end industrial, from precision electronics to heavy-duty equipment, so that enterprises can accurately select the model according to the working conditions and avoid wasted performance.
At the same time, the industry can customize copper enameled wires with different wire diameters, enamel thicknesses, and heat-resistant grades according to the special needs of customers, such as customizing special enameled wires with a high-temperature resistance of 260°C, and reagent-resistant enameled wires adapted to special chemical environments.
This customization capability allows copper enameled wire to meet the individual needs of new energy, semiconductor, aerospace and other emerging fields, the application boundary continues to expand.
4. Simplified Production Process
The emergence of direct welding, self-adhesive enameled copper wire from the production side has greatly simplified the coil manufacturing process, reducing the paint removal, paint dipping, drying and other processes, reducing labor and equipment investment costs.
Take automotive motor manufacturing as an example, after the use of self-adhesive enameled copper wire, the coil processing time of a single motor can be shortened by 40%, the labor cost is reduced by 30%, and at the same time reduces the energy consumption of dipping paint equipment and maintenance costs.
Even for ordinary enameled copper wires, the standardized production and stable supply reduces the cost of procurement and inventory management, which is very cost-effective.
5. Durability and Stability
The insulating varnish film of enameled copper wire is cured at high temperature, which has excellent wear resistance, aging resistance and environmental corrosion resistance, and can maintain stable insulation and conductivity for a long period of time under complex working conditions such as high temperature, humidity and oil pollution.
Compared with ordinary copper wire, aluminum wire winding, enameled copper wire made of coil is not easy to short-circuit, oxidation, fracture and other faults, the failure rate of the equipment is significantly reduced, the service life is extended by 2-3 times.
For industrial motors, power transformers and other long-term continuous operation equipment, the durability of enameled copper wire is directly related to the operation and maintenance costs of the equipment and the continuity of production, and has become the preferred protection for enterprises.
6. Environmentally friendly and sustainable
The copper core of enameled copper wire is a recyclable metal, and after scrapping, the enameled copper wire can be recycled and reused after stripping off the insulation layer through professional process, and the copper recycling rate can reach more than 99%, which is in wire with the development requirements of green manufacturing.
At the same time, the production process of enameled lacquer is constantly upgraded, and new environmentally friendly enameled lacquer is gradually replacing the traditional high-pollution raw materials, reducing the environmental emissions in the production process and promoting the sustainable development of the industry.
In the global “dual-carbon” goal, the environmental attributes of enameled copper wire, making it a new energy, green industry and other areas of the core supporting materials.
Application Scenarios of Copper Enameled Wire in All Industries
Enameled copper wire has a wide range of applications in civil, industrial, automotive, electronics and other fields, almost all the equipment involved in electromagnetic conversion, will use this product.
1. Electric power equipment field
Core for transformers, reactors, generators, electromagnets and other power equipment, is the core material for power transmission, voltage conversion, to ensure the stable operation of power grids and power equipment.
In the high-voltage power transmission system, the transformer coil made of enameled copper wire can withstand high voltage and high current working conditions to ensure the safety and stability of power transmission over long distances.
In distributed power generation, photovoltaic inverters and other new power equipment, copper enameled wire miniaturization and efficient conductive properties, help equipment to achieve lightweight and high power density.
2. Motor and power field
Covering industrial motors, automotive electronic motors, home appliance motors, wind turbines, etc., whether it is large-scale heavy equipment or small household motors, all of which are inseparable from enameled copper wires.
Industrial motors, as the core power source of factories, use enameled copper wire for lower energy consumption and more stable operation, significantly reducing the cost of electricity for enterprises.
New energy vehicles drive motors, air conditioning compressor motors, charging pile motors, etc., all rely on enameled copper wire to achieve high efficiency power output, is the core component materials for new energy vehicles.
3. Electronics and audio field
Used in speakers, hard disk drives, precision electronic components, watch micro-coils, etc., ultra-fine copper enameled wire is suitable for high-precision, miniaturized electronic equipment.
In high-end audio equipment, the low-loss characteristics of enameled copper wire can reduce distortion in signal transmission and ensure the clarity and fidelity of audio output.
In the field of precision electronics, nano-sized wire diameter enameled copper wire can be used to manufacture micro-sensors, micro-motors, and help the development of miniaturization of smart wearable and medical electronics.
4. Other precision fields
It can also be used in electric heating elements, resistance and capacitance, and all kinds of precision electromagnetic coils, which can guarantee the long-term reliable operation of precision components with stable performance.
In the field of medical equipment, the coils of MRI equipment and the miniature coils of cardiac pacemakers use high-quality enameled copper wires to ensure the accuracy and safety of the equipment.
In semiconductor manufacturing equipment, copper enameled wires are resistant to reagents and high temperatures to meet the special process requirements of chip manufacturing.
The industry value of copper enameled wire and selection recommendations
In short, copper enameled wire is the basic core material of the electrical and electronics industry, with excellent electrical conductivity, insulation, environmental adaptability and customization capabilities, to become the preferred material for electromagnetic coils.
It not only solves the short-circuit problem of coil winding, but also helps the equipment to realize miniaturization, high efficiency, energy saving, and promotes the technological upgrading and product iteration of the entire electrical industry.
At present, the industry has realized the technological breakthroughs of coil miniaturization, high slot full rate, high efficiency, new enameled copper wire products continue to emerge, and the application boundary is further expanded to new energy, semiconductor, aerospace and other emerging fields.
If you need to purchase or select copper enameled wire, you can choose the corresponding enamel type according to the working conditions of the equipment, heat resistance requirements, production process, or consult a professional manufacturer to obtain customized solutions to protect the performance and service life of the equipment, and at the same time to achieve cost optimization.
