Why Choosing the Right Winding Wire Matters
Whether you’re launching a new production line or upgrading an existing product, choosing the right copper winding wire is critical to ensuring the efficiency, durability and safety of your equipment. As the core conductive and insulating component of motors, transformers, generators, inductive coils and all kinds of electrical equipment, the performance of copper winding wire directly determines the operating efficiency, temperature rise control, insulation life and long-term reliability of the end equipment, and its quality runs through the whole industry chain scenarios of home appliance manufacturing, industrial control, new energy automobile, rail transportation, wind power generation, aerospace and so on. Wrong selection will not only cause frequent equipment failures, high standby and operating energy consumption, greatly shortening the service life of the whole machine, but also may lead to local overheating, insulation breakdown, short-circuit fire and other major safety hazards, and even lead to production line shutdowns, end-products recalled in bulk, and foreign export compliance penalties and other chain losses.
For equipment manufacturers, high-quality copper winding wire that matches the working conditions can effectively reduce after-sales maintenance costs, reduce unplanned downtime, and at the same time improve product energy efficiency and market reputation, and enhance the core competitiveness of the domestic and international markets; for engineering purchasers and end-users, complying with the appropriate winding wire can ensure the continuous and stable operation of the equipment, to avoid the production interruption due to the failure of the core components, the surge in the cost of operation and maintenance. For engineering purchasers and end-users, compliant and suitable winding wire can ensure continuous and stable operation of the equipment, avoiding production interruption and surge in operation and maintenance costs, and maximizing the value of equipment investment and use. In the global energy-efficiency standards continue to tighten, lightweight electrical equipment and high power density has become a trend, the selection of copper winding wire has long been not a simple material procurement, but the whole life cycle of electrical equipment is related to the performance of the key decision-making, safety and cost control, which directly affects the product compliance, market access and long-term use of value.
Choose Copper Winding Wire by Application
Choosing the right enameled copper winding wire requires a balance of heat resistance, insulation strength, mechanical properties, chemical resistance and processing performance, in order to accurately match the specific operating conditions of the equipment, different application scenarios on the winding wire gauge size, insulation structure, weather resistance has very different technical requirements.
Winding Wire Selection for Automotive Motor Scenarios
Automotive motors operate in harsh environments, with frequent temperature fluctuations, continuous mechanical vibration and oil corrosion, which requires very high comprehensive stability of winding wire: for low-voltage auxiliary motors such as window lifter, radiator fan, etc., the selection of polyester enameled wire of grade 130 (PEW) or polyurethane enameled wire of grade 155 (UEW) can meet the demand; for driving parts in high-temperature areas such as engine compartment, hybrid powertrain, etc., the priority is to use grade 180 (H) polyester enameled wire, which can meet the requirement. For engine compartment, hybrid powertrain and other high-temperature driving parts, polyester-imide enameled wire (EIW) of grade 180 (H) or polyester-imide + polyamide-imide composite coated enameled wire (EIW/AIW) of grade 200 are preferred, while polyester-imide (PI) enameled wire of grade 220 can be used in extreme high-temperature working conditions to ensure high torque output and vibration-resistant performance in combination with a reasonable wire gauge design.
Winding Wire Selection for Industrial Machinery Scenarios
Industrial machinery (pumps, conveyors, compressors, fans) is in heavy load continuous operation for a long time, with large heat generation and complex operating environment, 155 grade (F) modified polyester enameled wire (PEW-G) is the standard selection for general-purpose working conditions, and can be upgraded to 180-grade polyesterimide enameled wire for heavy-duty high-temperature and variable frequency drive scenarios, or 200/220-grade polyamideimide enameled wire, which can be used to avoid high torque output and vibration-resistant performance with excellent heat-resistant and oil-resistant properties. The excellent heat resistance and oil resistance can prevent the insulation from aging.
Winding Wire Selection for Small Precision Equipment
Drones, medical instruments, precision servo and other miniaturized equipment, in order to minimize the size and weight as the core objective, micro DC motors need to use ultra-fine diameter winding wire, 155-grade weldable polyurethane enameled wire because of the easy processing of direct welding, coil winding into good shape without scraping the insulation layer can be welded, significantly improve the efficiency of precision winding processing, become the first choice for micro precision motors.
Winding Wire Selection for High-Performance Variable Frequency Equipment
New energy vehicle main drive motors, high-end industrial power tools, frequency servo motors and other high-performance brushless DC equipment, the pursuit of high power density and extreme operating efficiency, the inverter brought about by the high-frequency pulse impact is significant, the mainstream use of 180/200 level EIW/AIW composite coated enameled wire, and all inverter drive models regardless of the voltage is high or low, need to be equipped with corona-resistant special winding wire, to resist the erosion of the insulation layer of the partial discharge, extend the winding The special corona-resistant winding wire is required for all inverter-driven models regardless of the voltage, to resist the erosion of the insulation layer by partial discharge and extend the service life of the winding.
Winding Wire Selection for Underwater & Humid Environments
Underwater, humid environment equipment (submersible pumps, underwater motors, marine equipment), the rejection of poor water resistance of polyimide film winding wire, the industry’s common polyethylene insulated nylon sheathed winding wire (QY/QXY), winding molding with glass fiber winding and epoxy resin vacuum impregnation process, to achieve the full closed waterproof insulation, external lines using light waterproof lead wires, completely eliminate moisture intrusion caused by insulation failure. Failure of insulation due to moisture intrusion is completely eliminated.
High Conductivity Copper Winding Wire for Lower Loss
High conductivity is the core performance advantage of copper winding wire, and its conductivity is directly determined by the grade, purity and processing technology of copper. According to the national standard GB/T 5231, the main material used for winding wire is T2 electrical copper Cu+Ag≥99.95%, with very low impurity content, while T3 copper Cu+Ag≥99.90%, which belongs to the lower order of electrical copper, with weaker conductivity and thermal conductivity than that of T2 copper, and is only used in the low-end low-voltage electrical scenario. International Annealed Copper Standard (IACS), 1.7241×10-⁸Ω・m for 100% IACS benchmark resistivity, T2 copper conductivity is about 99.5% IACS, resistivity slightly higher than the benchmark value, fully covering the conductive needs of industrial frequency, conventional medium frequency electrical equipment; purity of 99.99% or more of Ultra-High Purity Copper (UHPC) is only used for extreme high frequency, high voltage and thermal conductivity. Pure copper is only used for extreme high-frequency, ultra-low-loss precision electronic scenarios, conventional industrial equipment used without significant performance gains.
Conductor processing technology also affects the conductive properties, low-oxygen copper and oxygen-free copper by controlled annealing treatment, the internal grain uniformity, residual stress is small, not only to ensure the stability of the conductive, but also to enhance the bending toughness of the winding wire, to avoid the conductor breakage in the winding process. High purity copper can not only reduce the power loss, but also reduce the Joule heat generated, with the excellent thermal conductivity of copper itself, accelerate the heat dissipation of the winding to avoid local overheating. Copper with excessive impurity content will significantly increase the resistivity, which not only increases energy consumption, but also intensifies the heat generation of the equipment and accelerates the aging of the insulation layer. In high-frequency frequency conversion conditions, the skin effect and the proximity effect will lead to a reduction in the effective conductive cross-sectional area, the core means to reduce losses is the use of multi-stranded insulation stranded Litz wire structure, rather than simply enhance the purity of copper, which is also a high-frequency motor windings of the general design program.
Enameled Copper Wire Temperature Rating Guide
The enameled wire temperature index (thermal rating) is the core indicator of the winding wire’s thermal resistance, which directly determines the insulation life and operational safety of the equipment, and the selection should strictly follow the working conditions and thermal design specifications. Enameled wire temperature index is precisely defined as the temperature corresponding to the thermal life of the insulation material reaching 20,000 hours, which is the core index to measure the heat-resistant capability of the winding wire, and is also the basis for the thermal design of the equipment. When selecting equipment, it is necessary to follow the core principle of insulation rated temperature ≥ maximum ambient temperature + rated temperature rise + 10℃ hot spot margin, and reserve sufficient thermal buffer space to cope with the instantaneous thermal shock caused by startup and overload.
Common Heat Resistance Classes and Typical Application Scenarios
Commonly used heat-resistant grades in the industry include 105℃ (Class A), 130℃ (Class B), 155℃ (Class F), 180℃ (Class H), 200℃ (Class N), 220℃ (Class C), of which the 105℃ Class A insulation is not eliminated, and is still widely used in small power fans, low-temperature home appliances, precision electronic components, and other light-loaded low-temperature scenarios; the operating temperature of low-power transformers is about 70℃, and the use of Class A or 130℃ Class B winding wire can meet the safety requirements; long-term operating temperature of 120℃ industrial motor, need to match 155℃ class F and above, to prevent rapid aging of the insulation failure.
Engineering Empirical Rule for Insulation Thermal Life
Thermal life of insulation follows the general engineering rule of thumb: for every 10℃ increase in working temperature, the thermal life is approximately halved; for every 10℃ decrease in working temperature, the thermal life is approximately doubled; this law is an engineering approximation, and the precise life curve is determined by the activation energy of the insulation material, which needs to be verified by professional thermal aging test.
Strategy for Upgrading Heat Resistance Classes in Harsh High-Temperature Scenarios
There are significant differences in the design life of different equipments. The design life of home appliance motors is about 10,000 hours, the design life of general industrial motors is 20,000 hours, and wind power and downhole equipments require more than 40,000 hours, so a higher heat-resistant grade can provide a larger life margin to cope with environmental fluctuations and sudden load changes. Downhole oil pumps, metallurgical equipment and other high-temperature scenarios, even if the winding operating temperature of 150 ℃, but also need to use 180 ℃ H-class or even 200 ℃ N-class winding wire to protect the reliability of long-term high-temperature operation. In addition, thermal shock resistance, insulation thermal conductivity is also a key indicator, the former to adapt to the compressor, new energy vehicle motor temperature change scenarios, the latter to enhance the efficiency of heat dissipation in a narrow slot, delaying the aging of the insulation.
Copper Winding Wire Size and Gauge Selection
Wire gauge and cross-sectional area directly determines the winding wire resistance, potential for current-carrying capacity, slot fill factor and winding technology, is the core parameter of selection, enameled wire current-carrying capacity is not a fixed universal value, the ultimate carrying capacity by the heat dissipation conditions, ambient temperature, slot fill factor, the winding structure of the joint decision, can not be detached from the conditions of the application of fixed data. The wire gauge of motor winding has strong correlation with power: micro-motor (<100W) adopts AWG 28-36, cross-sectional area 0.0127-0.0804mm²; small and medium-sized motor (100W-10kW) adopts AWG 18-28 as the main stream, and the heavy-duty model above 3kW adopts AWG 13-18, cross-sectional area 0.823-2.624mm²; high-power motor (>10kW) adopts enameled wire, which has no fixed general value. AWG 18-10 is adopted for high-power motors (>10kW), and 4-10mm² is commonly used for high-voltage motors with large cross-section, corresponding to AWG11-AWG8 wire gauge.
According to IEC and national standard, insulation coating is divided into Grade 1 thin build, Grade 2 thick build and Grade 3 extra build, UEW and AIW insulation thickness increases with conductor diameter, which directly affects the outer diameter of enameled wire and slot fill factor, thick build can improve insulation strength, and thin build can help to improve the density of winding wire. SWG20 has a conductor diameter of 0.914mm and a cross-sectional area of about 0.656mm², which is significantly different from AWG20. Industrial selection should be strictly in line with authoritative standards: enameled round copper wire corresponds to IEC 60317-0-1, GB/T 6109, enameled flat wire corresponds to IEC 60317-0-6, and at the same time, you can refer to NEMA MW1000 standards and regular manufacturers of measured parameters to ensure that the wire gauge is perfectly adapted to the slot and winding equipment.
Choosing Copper Winding Wire for Harsh Environments
The core of selection for harsh environments revolves around the three major elements of operating voltage, environmental media and mechanical stress, and customized matching of insulation and weather resistance characteristics. Inverter-powered frequency conversion equipment (400V/800V new energy vehicles, industrial frequency converters) there are high-frequency voltage spikes, low-voltage conditions are also prone to partial discharge, corona-resistant winding wire must be used; high-voltage transformers and industrial motors only need high breakdown strength thick insulation, no corona-resistant performance.
In addition to underwater, high temperature environment, salt spray, oil, acid and alkali corrosion, high and low temperature cycling and other conditions need special selection: coastal ships, outdoor power equipment need to use salt spray modified insulation enameled wires; chemical industry requires insulation with chemical inertness, acid and alkali gases to resist erosion; rail transportation, construction machinery and other strong vibration scenarios, you need to ensure that the insulation layer of the winding wire adhesion is strong, does not fall off, does not crack. All the special winding wires for harsh environments must comply with IEC 60317, GB/T 6109 and other standards, and pass the third-party testing of heat resistance, weather resistance and mechanical properties to ensure long-term stable operation.
Quality Standards and Certifications
Quality standards and authoritative certification is the core guarantee for the quality of winding wire, covering the performance, safety, environmental protection, the whole dimension of compliance requirements, is to avoid the procurement risk, to protect the long-term reliable operation of the equipment based on the key. UL certification is the core safety access credentials of the North American market, the test covers the electrical breakdown, flame retardant, thermal stability, environmental resistance, and effective screening of counterfeit and shoddy products; the European Union market needs to comply with the CE certification, and mandatory products need to pass the CCC certification in China. CE certification is required for the EU market, CCC certification is required for mandatory products in China, and VDE certification is suitable for the European high-end industrial control market. In the international standard system, IEC 60317-0-1 is the general standard for enameled round copper wires, IEC 60317-0-6 is for enameled flat wires, and GB/T 6109 is equivalent to the IEC standard, which guarantees the consistency of the product performance, and the industrial modeling can refer to the NEMA MW1000 standard and the measured parameters of the regular manufacturers simultaneously.
Environmental Certifications
In terms of environmental compliance, winding wire needs to meet EU RoHS and REACH regulations, restricting the use of hazardous heavy metals and substances of high concern; halogen-free enameled wire corresponds to IEC 60684 and UL 2501 standards instead of IEC 61249 for PCB materials; ISO14001 environmental management system certification for enterprises can realize the whole process of environmental control and management from raw material procurement, drawing and coating to the delivery of finished products. Environmental protection control.

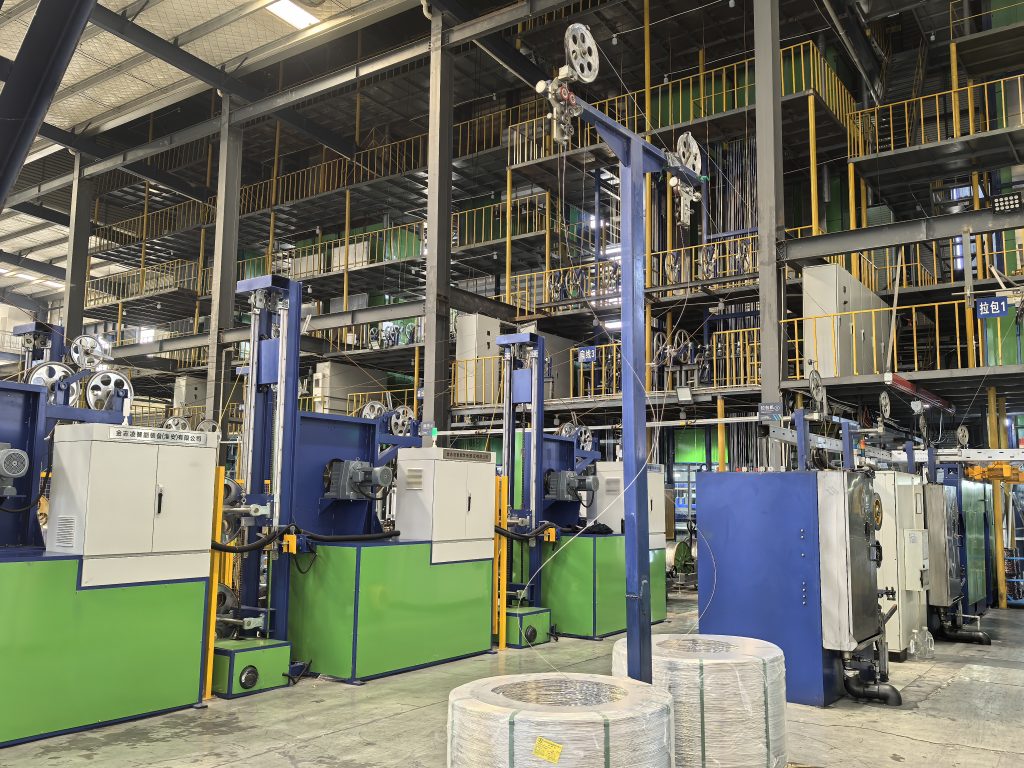

Key inspection items of factory quality inspection
Regular manufacturers will also carry out factory testing of breakdown voltage, flexibility, thermal shock, softening breakdown, etc. for each batch of products to ensure that performance is up to standard. Priority is given to products with multiple authoritative certificates and in line with national and international standards, which is the most effective way to avoid procurement risks and ensure the long-term and reliable operation of the equipment.
