In the field of electrical equipment manufacturing, the selection of winding wire directly determines the cost, weight and operational stability of the equipment. Many electrical equipment manufacturers, purchasing specialists in the selection of type, often caught in the “high cost, equipment weight exceeds the standard, insulation performance does not meet the standard” dilemma.
Enameled aluminum wire as a new type of special winding wire, with lightweight, cost-effective, excellent insulation and heat-resistant performance, gradually become the preferred solution to this dilemma, widely used in new energy vehicles, aerospace, household appliances and other fields.
What is enameled aluminum wire?
Enameled aluminum wire is a high-purity aluminum as the conductive core, the surface evenly coated with a layer of ultra-thin polymer enamel insulating layer of special winding wire, the core function is to achieve efficient conversion of electrical energy and magnetic energy, is the core material for all types of coil winding.
Its core composition is divided into two parts, one without the other. The conductive core is made of high purity aluminum with a purity of 99.9% or more, which can be processed into aluminum wires with different wire diameters from 0.15-5.10mm through professional drawing process to meet the winding needs of different scenarios.
The enamel insulating layer on the surface is the core protection and insulation component, the thickness of which is precisely controllable, which not only achieves good electrical insulation, but also provides mechanical protection and anti-corrosion protection for the aluminum core, avoiding oxidation and abrasion of the aluminum core.
Compared with traditional thick insulated wires (e.g. paper, glass fiber, mica insulated wires), the ultra-thin insulating layer design of enameled aluminum wires enables high-density winding of coils, which significantly improves the utilization of space inside the equipment and operational efficiency.
Core Features of Enameled Aluminum Wire
Lightweight
The density of aluminum is only 2.7g/cm³, which is about 30% of the density of copper. Using enameled aluminum wire instead of enameled copper wire can reduce the weight of the equipment by more than 50%, which significantly reduces the cost of transportation and installation of the equipment, and is especially suitable for large-scale equipment and light-weighting demand scenarios.
In terms of material cost, the price of aluminum is only about 1/2 of copper, and the cost of copper-clad aluminum enameled wire can be reduced by 30% compared with pure copper products, for large-scale procurement of enterprises, can significantly reduce procurement costs and enhance the cost-effectiveness of products.
At the same time, the processing difficulty of aluminum enameled wire is moderate, high winding efficiency, can reduce the labor cost of the production process, and further reduce the overall production cost of enterprises.
Excellent insulation and heat resistance
Enameled aluminum wire has a double insulation structure of aluminum surface oxide film and enamel coating, with excellent insulation effect, which can effectively avoid short-circuiting between coils, ensure stable transmission of current and prolong the service life of equipment.
Its heat-resistant grade covers 105℃-240℃, which covers the working temperature requirements of most electrical equipment, and some high-end polyimide material models can reach 250℃, which is 20℃ higher than ordinary enameled copper wires.
This excellent heat resistance makes it suitable for industrial high-temperature motors, aerospace equipment and other high-temperature working conditions, even in long-term high-temperature operation, but also to maintain stable insulation performance, not easy to appear in the insulation layer aging, breakdown and other problems.
Good corrosion resistance and mechanical properties
The natural oxide film on the surface of aluminum can effectively resist the erosion of air and moisture, coupled with the protection of enamel coating, which further enhances the chemical resistance of the enameled aluminum wire and can resist the corrosion of oil, solvents, acids and alkalis and other chemical media.
In harsh environments such as offshore wind power and chemical equipment, the use of enameled aluminum wire can extend the life of the equipment by 50%, significantly reducing maintenance costs. At the same time, it has a certain degree of flexibility, can withstand bending, stretching and other mechanical stress, to facilitate coil winding.
Whether it is complex coil winding process or vibration during the operation of the equipment, the insulation layer of enameled aluminum wire is not easy to crack, fall off, and can be stable performance.
Efficient Heat Dissipation
Aluminum has a thermal conductivity of 237W/(m-k), which is far superior to most metals other than copper. Equipment using enameled aluminum wires can quickly dissipate heat generated during operation and reduce heat accumulation.
The rapid dissipation of heat can reduce the aging speed of the insulation layer, avoid equipment failure due to overheating, and at the same time can enhance the operational efficiency of the equipment and extend the overall service life of the equipment.
Production Process of Enameled Aluminum Wire
The quality of enameled aluminum wire directly determines its use and service life, the formal production process needs to go through five core links, each step has a strict standard control to ensure that the product meets the industry norms.
Aluminum wire preparation
The first step in the production process is to pull high-purity aluminum ingots through the manufacturing process, processed into different wire diameter (0.15-5.10mm) of the aluminum wire, wire diameter accuracy directly affects the subsequent winding effect and conductive properties.
After drawing, the wires need to be cleaned and annealed to completely remove surface impurities and oxidation layers to ensure that the subsequent insulation layer can closely fit the aluminum core and improve the adhesion of the insulation layer to avoid peeling problems.
Insulation Coating
Using dip coating or electrostatic spraying, on the surface of the treated aluminum wire, uniformly coated with a layer of polymer enamel insulating material, common materials include polyurethane, polyesterimide, polyimide and so on.
The thickness of the coating needs to be precisely controlled. If it is too thick, it will affect the winding density of the coil; if it is too thin, it will not guarantee the insulating performance. Usually, the thickness of the coating is adjusted according to the insulation level of the product and the application scenarios to ensure that the insulating performance and the flexibility of the winding are taken into account.
Curing Process
The coated aluminum wire is put into a high temperature oven for curing treatment. By precisely controlling the temperature and time, the insulation layer and the aluminum core are tightly bonded to form a solid whole.
The curing process can significantly improve the durability, heat resistance and chemical resistance of the insulation layer, ensuring that the enameled aluminum wire will not be peeled off or cracked during long-term use, and that the insulation layer will play a stable role as an insulator.
Quality Inspection
Finished enameled aluminum wires are fully tested in accordance with international standards (NEMA MW 1000, IEC 60317), with core testing items including insulation integrity, electrical conductivity, mechanical strength, and heat resistance.
Among them, UL certification-related tests need to include thermal aging tests, insulation strength tests, tensile and thermal shock tests, etc., to ensure that the product can operate stably for 20,000 hours at the rated temperature. Unqualified products will be strictly prohibited from leaving the factory to ensure product quality.
Packaging and Distribution

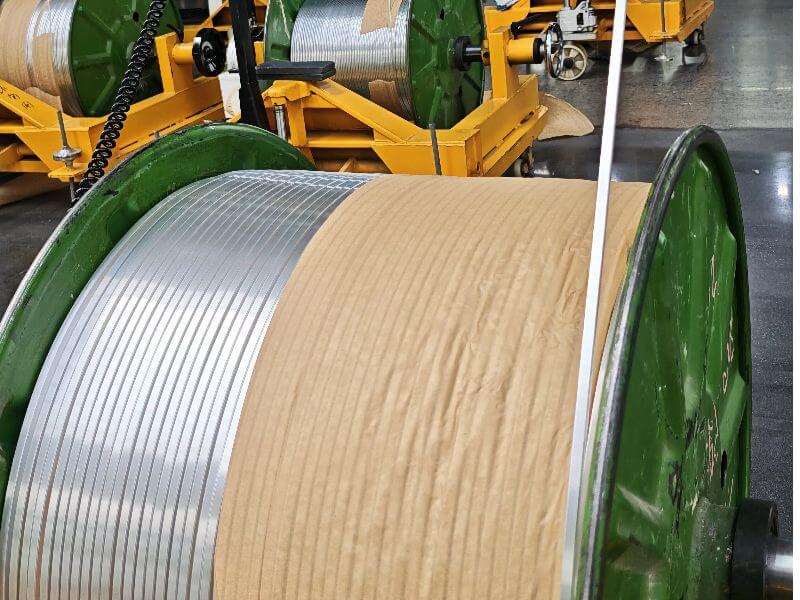

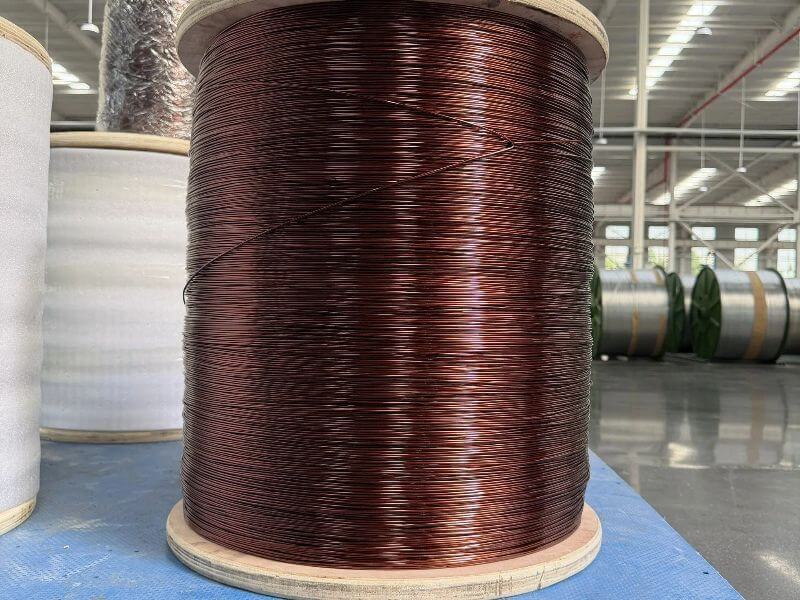

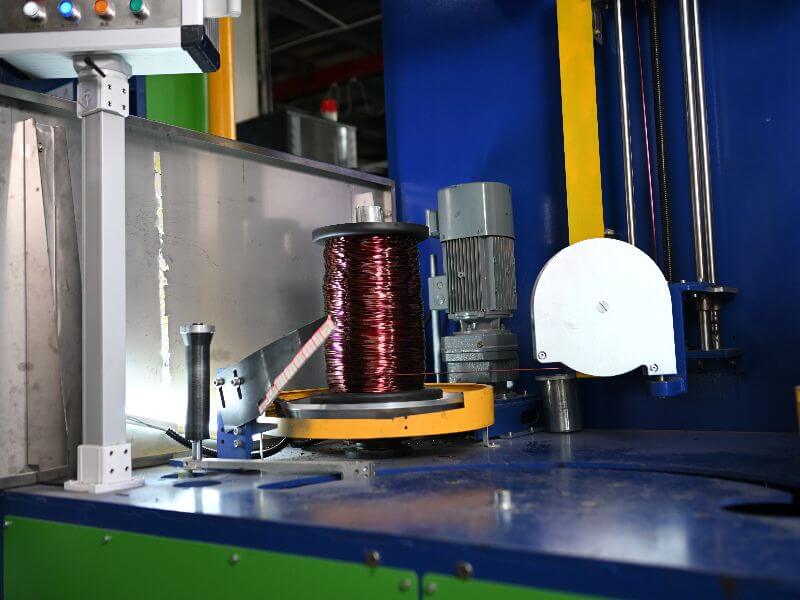

The tested enameled aluminum wires will be wound into spools or coils and packaged with moisture-proof and breakage-proof packaging materials to suit the needs of different purchasing quantities.
Protective measures are taken during the packaging process to avoid extrusion and abrasion of the enameled aluminum wires during transportation and to ensure that the products are in good condition when they are delivered to the customers.
Insulation type of enameled aluminum wire
The insulation type of aluminum enameled wire directly determines its heat resistance level, applicable scenes and performance, different insulation types of products, there are obvious differences in the characteristics and applications, need to be combined with the precise choice of equipment needs.
- Polyurethane enameled wire: general-purpose insulation, cost-effective, can be directly welded without removing the insulation layer, convenient operation.
Its high frequency loss is low, good moisture resistance, suitable for small motors, inductor coils, widely used in small electronic equipment, precision instruments and other scenes.
- Poly nylon enameled wire: It adopts the double-layer structure of polyurethane bottom coating + nylon top coating, which improves the abrasion resistance and chemical resistance on the basis of polyurethane.
It is suitable for 30AWG and above wire diameter enameled aluminum wires, which is suitable for the scenes that need solderability and have certain requirements for abrasion resistance, such as medium-sized motors and household electrical appliances coils.
- Polyimide enameled wire: high-temperature grade insulation, heat-resistant temperature up to 220 ℃ or more, thermal shock resistance, breakdown resistance is excellent.
Its thermal shock and cut resistance far exceeds other insulation types, suitable for high temperature industrial motors, aerospace equipment, high temperature chemical equipment and other harsh high temperature scenarios.
- Polyadhesive Enameled Wire: On the basis of polyurethane enameled wire, a layer of thermoplastic adhesive is added, which can make the coils stick together as one after heating.
It is suitable for special motors, compressor coils, etc. It can improve the stability of the coils, avoid loosening of the coils, and reduce vibration and noise during the operation of the equipment.
- Anti-Corona Enameled Wire: Excellent anti-corona performance, can effectively reduce the risk of corona discharge in high-voltage equipment, breakdown voltage up to 5kV/mm.
Suitable for high voltage scenarios such as frequency conversion motors, high voltage transformers, etc. The wire diameter covers 0.15-5.10mm, which can be adapted to the needs of high voltage equipment with different power.
Enameled aluminum wire vs. enameled copper wire
Many buyers and engineers will be entangled, aluminum enameled wire and copper enameled wire in the end how to choose? Both have their own advantages, the core difference is focused on performance, cost and application scenarios, no need to blindly pursue high conductivity, adapt to the needs of the key.
Performance core differences
Conductivity: enameled copper wire conductivity is better (58S/m), is enameled aluminum wire (37S/m) of about 1.6 times, suitable for the conductivity requirements of the scene is very high.
Weight and cost: enameled aluminum wire is lighter (density of only 30% of copper), lower cost, copper-clad aluminum enameled wire carbon emissions can also be reduced by 40%, suitable for lightweight, cost-sensitive scenarios.
Heat resistance and heat dissipation: the heat resistance of aluminum enameled wire is 20℃ higher than that of copper enameled wire, with better heat dissipation performance, which is suitable for high temperature working conditions; the heat resistance of copper enameled wire is relatively weaker, but with better ductility.
Mechanical properties: enameled copper wire ductility, tensile strength is better, not easy to break; enameled aluminum wire flexibility moderate, need to pay attention to the operation of the winding specification, avoid excessive bending.
Application Scenario Differences
Enameled aluminum wire: focused on new energy vehicles, aerospace, large transformers, household appliances, power tools and other scenes, the core demand is lightweight, cost control, high temperature adaptability.
Enameled copper wire: focused on high-end precision motors, high-frequency electronic equipment, high-end instruments and other scenes, the core demand is high conductivity, high mechanical strength, the cost and weight requirements are low.
Application Scenarios of Enameled Aluminum Wire
Enameled aluminum wire has a wide range of application scenarios, covering a variety of fields in the electrical industry, by virtue of its lightweight, cost-effective, heat and corrosion-resistant advantages, it has become the preferred material for winding various types of electrical equipment coils, the specific applications are as follows:
Motor and transformer
This is the most core application scenario of enameled aluminum wire, which is widely used in industrial motors, household air conditioner compressor motors, refrigerator motors, large transformer coils and other equipment.
Its lightweight and low-cost advantage can significantly reduce the weight and manufacturing cost of motors and transformers, and the ultra-thin insulation layer design can realize high-density winding of coils and enhance the operational efficiency of equipment.
In large transformers, the use of enameled aluminum wire can effectively reduce the weight of the equipment, reduce transportation and installation costs, while its efficient heat dissipation performance, to avoid overheating equipment aging.
Automotive
Whether it is new energy vehicles or traditional fuel vehicles, aluminum enameled wires are widely used in the automotive industry, mainly for ignition systems, starters, generators and other core electrical components.
Because new energy vehicles have a high demand for lightweight, the lightweight characteristics of enameled aluminum wire can reduce vehicle energy consumption. Enameled aluminum wire can improve range. Its oil resistance and vibration resistance can be adapted to the harsh working conditions of automobile engine compartments.
It is expected that the global new energy vehicle enameled wire market will reach 48 billion yuan in 2030, with a compound growth rate of 22%, the market demand for enameled aluminum wire will continue to rise.
Household appliances
Washing machines, microwave ovens, televisions, electric ovens, refrigerators and other commonly used household appliances, most of their internal coils use enameled aluminum wire, the core demand is cost-effective, safe insulation.
Enameled aluminum wire has excellent insulating properties, which can eliminate the potential danger of electric leakage and ensure the safety of use. At the same time, the cost is low, which can help home appliance companies control manufacturing costs and enhance product competitiveness.
In the high-end air conditioning compressor, the use of enameled aluminum wire can also reduce the noise of the equipment, enhance the user experience.
Aerospace
The electrical systems of aerospace equipment (avionics, sensors, actuators, etc.) require high weight and heat resistance, and enameled aluminum wire’s lightweight and high-temperature adaptability make it the preferred material in this field.
The motor coils of power tools need to take into account both light weight and durability. The light weight advantage of enameled aluminum wire can enhance the portability of power tools, and its good mechanical properties and corrosion resistance can be adapted to the complex use of the environment.
How to choose the right enameled aluminum wire?
The core of selection is to combine the working temperature, voltage demand and application scenarios of the equipment to avoid over-selection or under-selection. High temperature scenarios prioritize high temperature grade insulation types such as polyimide and corona resistant.
Determine the wire gauge (AWG)
Wire gauge (AWG) that is, the wire diameter of enameled aluminum wire, which directly determines its current-carrying capacity and winding density, the higher the value of the wire gauge, the thinner the wire, the weaker the current-carrying capacity, but the better the flexibility; the lower the value of the wire gauge, the thicker the wire, the stronger the current-carrying capacity.
According to the current-carrying requirements of the equipment, combined with the size of the installation space, select the appropriate wire diameter (0.15-5.10mm). For high-current equipment (such as large transformers and industrial motors), choose a thicker wire diameter, and for small precision equipment, choose a thinner wire diameter.
Match the insulation type and heat-resistant grade
Combine with the working temperature of the equipment, choose the enameled aluminum wire with corresponding heat-resistant grade (105℃-240℃). For high-temperature scenarios (e.g., industrial high-temperature motors, aerospace equipment), give preference to polyimide, corona-resistant insulation types.
For general scenarios (e.g. household appliances, small motors), polyurethane and polyamide insulation types can be selected, taking into account both performance and cost; for high-voltage scenarios, corona-resistant enameled wires should be considered as a priority to ensure that the insulating properties are up to standard.
Consider the voltage level
According to the working voltage of the equipment, choose the enameled aluminum wire with breakdown voltage that meets the requirements, to avoid the breakdown of insulation due to high voltage, which may lead to equipment failure or safety hazards.
High-voltage equipment (such as high-voltage transformers, inverter motors) need to choose products with high breakdown voltage, while ordinary low-voltage equipment can choose enameled aluminum wires with conventional voltage levels, without excessive selection.
Standards and Certification of Enameled Aluminum Wire
Enameled aluminum wire standards and certifications, is to ensure product quality, to ensure that the core basis for different market demand, especially B procurement, need to focus on product standards compliance and certification, to avoid purchasing unqualified products.
International Standards
- NEMA MW 1000: the authoritative standard in North America, which specifies the performance indexes, test methods and quality requirements of enameled aluminum wires, and is the core basis for procurement in the North American market.
The standard has detailed regulations on the insulation strength, heat resistance and mechanical properties of enameled aluminum wires, and the requirements need to be adjusted according to the wire diameter and thickness of the enamel film during testing.
- IEC 60317: a global standard covering Europe, Asia and other regions, regulating the production, testing and quality control of enameled aluminum wire, is the most widely used standard in the world.
The standard and the domestic GB / T standard convergence, in line with the standard products, can be adapted to most countries and regions of the market demand, to facilitate the export of enterprises.
- JIS C3202: Japan’s standard, mainly adapted to the market demand in Japan and Southeast Asia, the precision of the enameled aluminum wire, insulation performance has special requirements, the export of the region need to focus on.
Core certification
- UL certification: the North American market must be certified, according to UL1446 standard testing, including thermal aging, insulation strength, tensile and thermal shock and other items.
UL certified enameled aluminum wire can ensure stable operation under 20,000 hours of rated temperature, which is the “passport” to enter the North American market.
- RoHS & REACH certification: a global environmental protection certification to ensure that the enameled aluminum wire does not contain lead, mercury, cadmium and other harmful substances, in line with the global trend of environmental protection.
With the continuous improvement of environmental protection requirements, more and more enterprises require the purchase of enameled aluminum wire through the certification, to avoid environmental issues affecting the export of products.
- GB/T certification: China’s national standard, suitable for the domestic supply chain procurement needs, in line with the standard of the product, to ensure the safe and stable use in the domestic electrical equipment manufacturing.
As a lightweight, cost-effective, special winding wire with excellent insulation and heat-resistant properties, enameled aluminum wire has become the preferred material for new energy vehicles, aerospace, household appliances, industrial equipment and other fields due to its unique advantages.
With the increasing global demand for lightweight and cost control, as well as the rapid development of new energy vehicles and other fields, the market demand for enameled aluminum wires will continue to grow, and the market outlook is broad.
